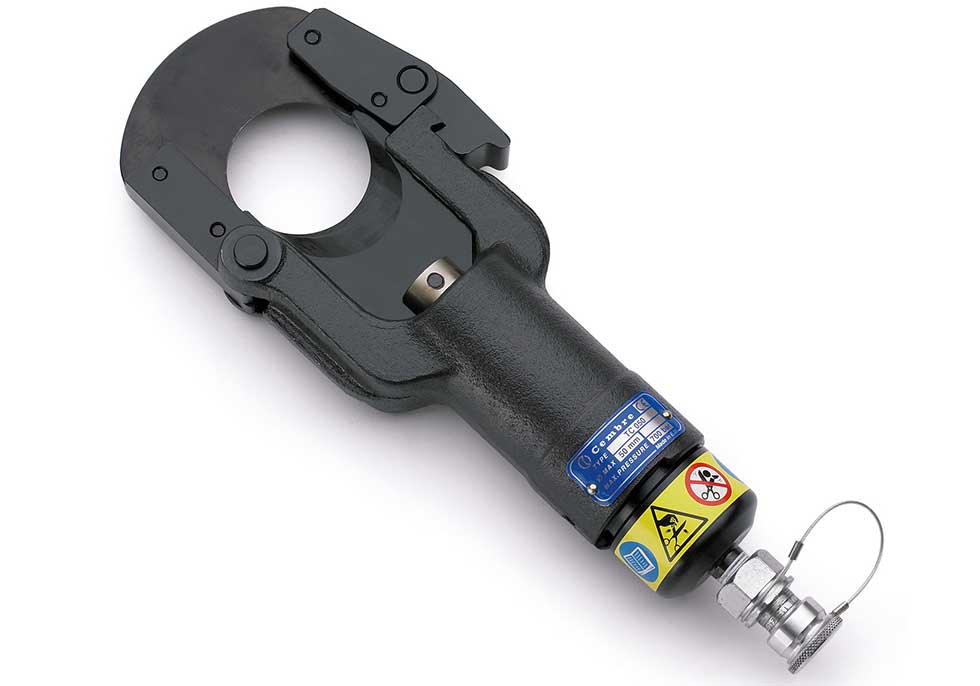

LOWER BLADE FOR MODEL TC050

Lower Cable Cutting Blade Remove locking pin (4) and open the cutting tool head. Operate the pump to advance the lower cutter blade (24) until split pins (22 and 23) are visible on the ram (18). Remove split pins (22 and 23) using a drift and remove the lower cutter blade. Insert the new blade and secure with spring pins. ? Warning: Before closing the cutting tool head release the oil pressure and retract the lower cutter blade otherwise the blade may hit the lower blade edge and damage it.
