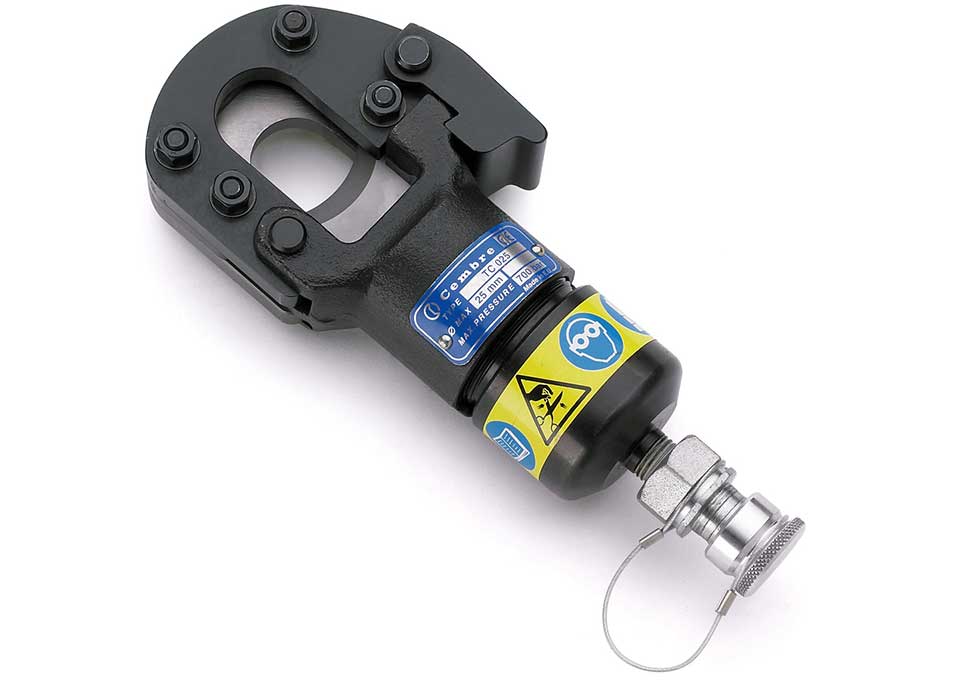

UPPER BLADE FOR MODEL TC050

Upper Cable Cutting Blade With the lower cutter blade fully retracted, the tool head closed and the locking pin (4) fully secured, hold the tool on the blade spacer (1) or (26) in a bench vice (Fig 3). With a 6mm wrench, unscrew 4 screws (28), remove the two holding plates (29) and the upper cutter blade (25) noting the position of the cutting edge bevel. Insert the new cutting blade, noting the position of the cutting edge bevel. Fit the 2 holding plates (29) and secure with 4 screws (28) with relevant washer (30).
